Main

Range of product

HDB3LE

Product or component type

Residual current breaker with overcurrent protection (RCBO)

Mechanical durability

20000 cycles

[In] rated current

25 A

Electrical durability

10000 cycles

Trip unit technology

Thermal-magnetic

Device application

Isolation

Complementary

Poles description

2P

[In] rated current

25 A

Earth-leakage sensitivity

10.0 mA

[Ue] rated operational voltage

230 V AC 50...60 Hz

Residual current

10 mA

[Uimp] rated impulse withstand voltage

4.0 kV

Curve code

C

Magnetic tripping limit

5...10 x In

Cable entry

Top and bottom

Mounting support

35 mm DIN rail

Clamping connection capacity

<= 25 mm²

Tightening torque

2.5…4.5 N.m

Connections - terminals

Forked type tag connectors

Environment

Tropicalisation

2

IP degree of protection

IP20

Electrical shock protection class

Class II

Ambient air temperature for operation

-35…70 °C

Standards

IEC 61009-1

Product certifications

CE

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Contractual warranty

Warranty

18 months

Дифференциал автомат #HDB3LE2C25R10

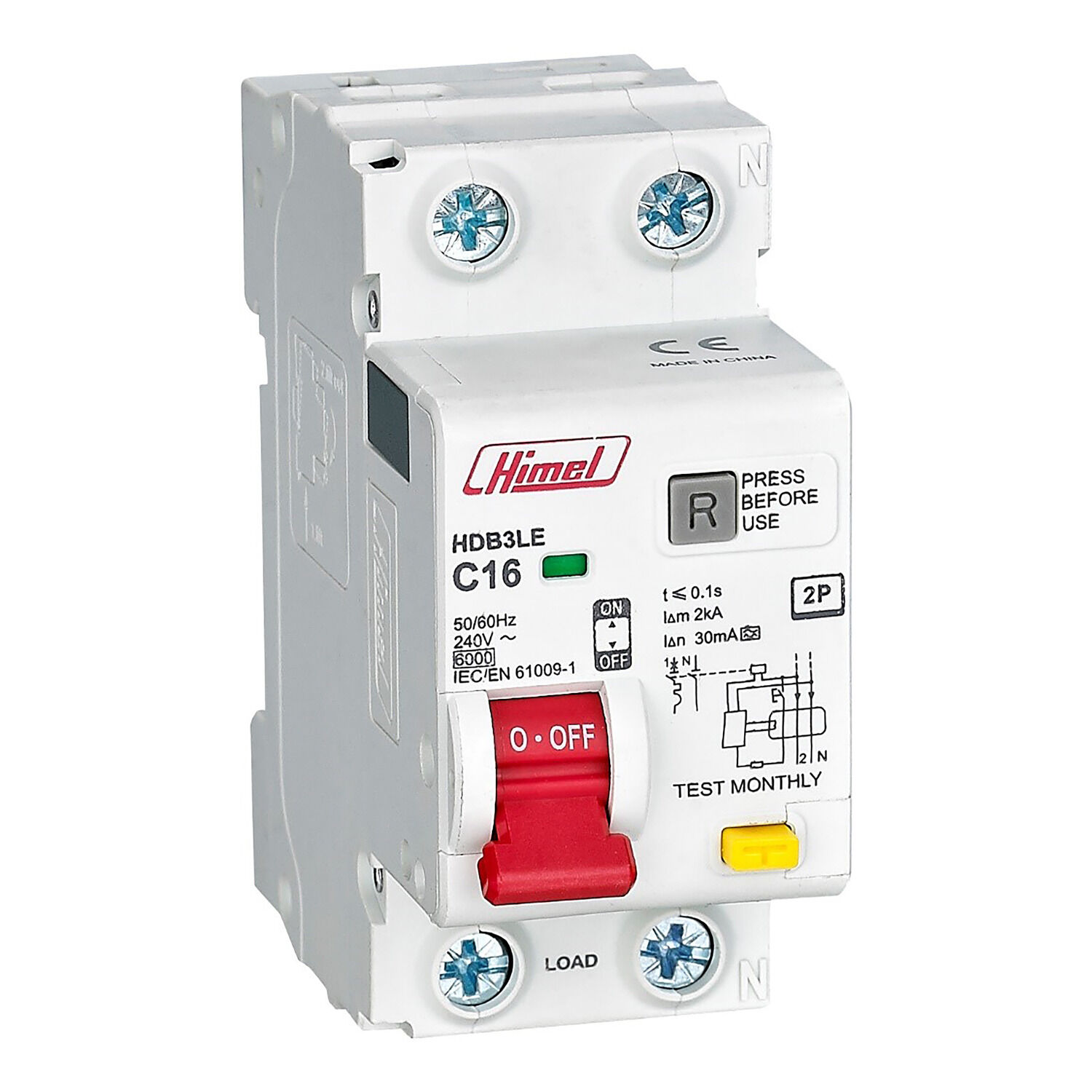

Residual Current Operated Circuit Breaker, HDB3LE, 2P, C curve, 25A, 10mA, AC
