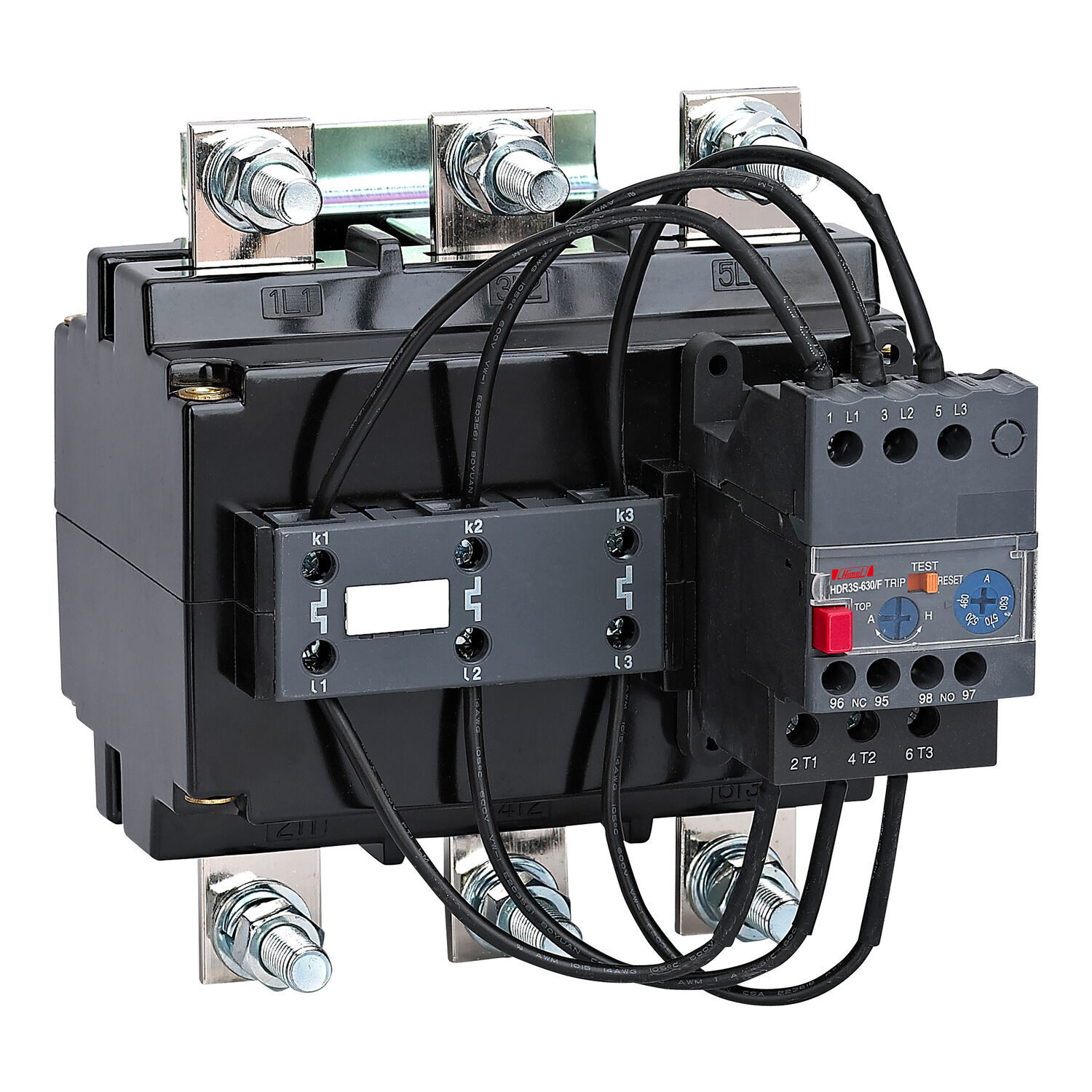

    logoHDR3s thermal relay 180-250 A
    HDR3s thermal relay 180-250 A

    Дулааны реле #HDR3s630250F

    Himel

    HDR3s thermal relay 180-250 A

    Дулааны реле #HDR3s630250F

    Actions

    FacebookTwitterTelegram
    HDR3s thermal relay 180-250 A
    HDR3s thermal relay 180-250 A
    Himel
    Олон Улсын Цахилгаан Техникийн Хорооны IEC стандартыг хангасан.
    HimelHimel

    Actions

    FacebookTwitterTelegram

    HDR3s thermal relay 180-250 A

    Дулааны реле #HDR3s630250F

    Стандарт
    IEC 60947-4-1
    Нэрлэсэн гүйдэл /А/
    180A-250A

    Price section

    Үнэ / 1 ш

    345,400 ₮

    Buy section

    Тоо хэмжээ:

    Стандарт
    IEC 60947-4-1
    Нэрлэсэн гүйдэл /А/
    180A-250A

    Main

    Range of product
    HDR3s
    Product or component type
    Thermal overload relay
    Device application
    Motor protection
    Thermal protection adjustment range
    180…250 A
    Frame size
    630A

    Complementary

    Protection type
    Overload
    Phase failure
    Reset
    Automatic reset
    Manual reset
    Control type
    Test button
    Stop button
    [Ith] conventional free air thermal current
    5 A
    Local signalling
    Trip indicator
    [Ie] rated operational current
    1.57 A at 230 V AC-15
    0.9 A at 400 V AC-15
    0.14 A at 230 V DC-13
    [Ui] rated insulation voltage
    690 V
    [Uimp] rated impulse withstand voltage
    6 kV
    Utilisation category
    AC-15
    DC-13
    Poles description
    3P
    Height
    171 mm
    Width
    150 mm
    Depth
    181 mm

    Environment

    Installation category
    III
    Pollution degree
    3
    Ambient air temperature for operation
    -5…40 °C
    Ambient air temperature for storage
    -25…55 °C
    Operating altitude
    2000 m
    Standards
    IEC 60947-4-1
    Product certifications
    CB
    CE
    SEMKO
    IP degree of protection
    IP20
    Relative humidity
    0…95 %

    Packing Units

    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
