Main
Range of product

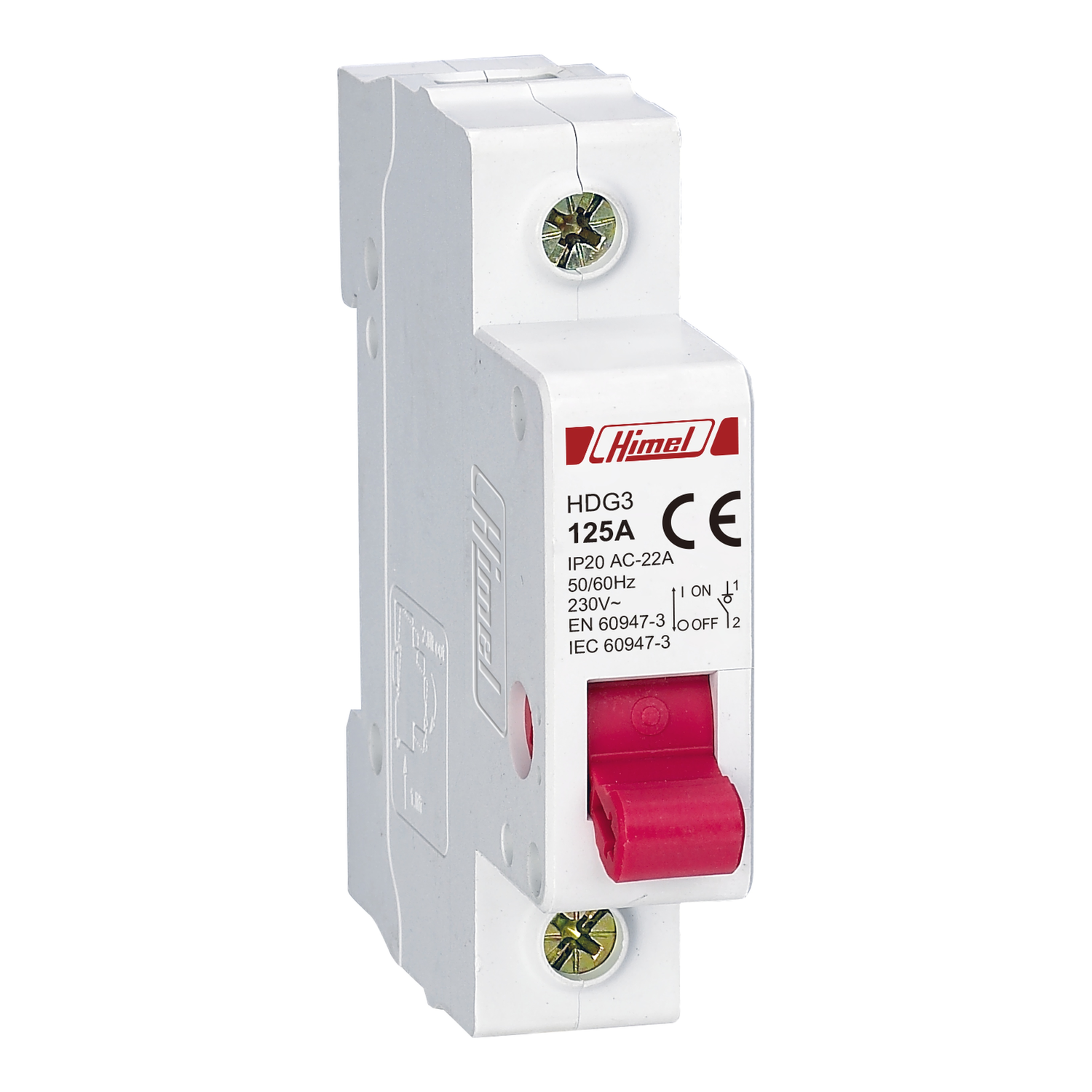

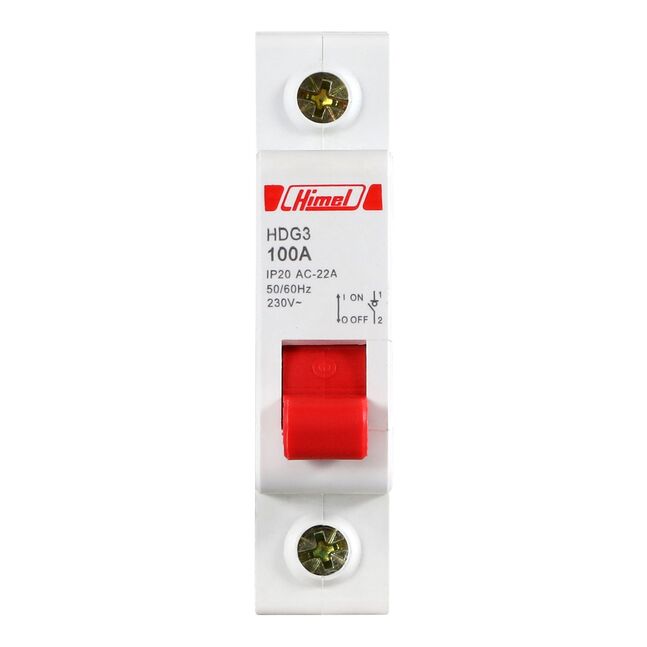

HDG3
Product or component type
Switch disconnector
Suitability for isolation
Yes
Device application
Isolation
Complementary
Poles description
1P
[In] rated current
63 A
[Ue] rated operational voltage
230 V
Network type
AC
Network frequency
50...60 Hz
Electrical durability
1500.0 cycles
Mechanical durability
8500.0 cycles
[Icw] rated short-time withstand current
1.26 kA
[Uimp] rated impulse withstand voltage
6.0 kV
Utilisation category
AC-22A
[Ui] rated insulation voltage
500 V
Provision for padlocking
Handle padlockable in on and off position
Mounting support
DIN rail
Connections - terminals
Tunnel type terminals
Clamping connection capacity
<= 16 mm²
Tightening torque
2 N.m
Standards
IEC 60947-3
Product certifications
CE
Height
80 mm
Width
17.7 mm
Depth
75.4 mm
Environment
Ambient air temperature for operation
-20…60 °C
Ambient air temperature for storage
-40…70 °C
Environmental characteristic
Continuous exposure to damp heat
Pollution degree
2
Relative humidity
95 %
