Main

Range of product

HDQ3HB

Product or component type

Automatic transfer switch

Device application

Change source of supply

Poles description

Network type

Network frequency

50 Hz

Mounting mode

Fixed

Upside connection

Screwed

Downside connection

Screwed

Contact position indicator

Yes

[Icm] rated short-circuit making capacity

105 kA 400 V AC at 50 Hz

Complementary

Display type

LED

Transfer switch class

Number of contact position

Signal contacts composition

1 NO + 1 NC

Utilization category

AC-33iB

Control type

Split controller

Mounting support

Plate

[Ie] rated operational current

125 A

[Ui] rated insulation voltage

800 V

[Uimp] rated impulse withstand voltage

8 kV

Suitability for isolation

Yes

Mechanical interlocking

With mechanical interlocking

Mechanical durability

5000 cycles

Electrical durability

1000 cycles

Height

425 mm

Width

220 mm

Depth

148 mm

Net weight

9.46 kg

Environment

Standards

GB 14048.11

IP degree of protection

IP20

Pollution degree

Ambient air temperature for operation

-25…70 °C

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

Main

Range of product

HDQ3HB

Product or component type

Automatic transfer switch

Device application

Change source of supply

Poles description

Network type

Network frequency

50 Hz

Mounting mode

Fixed

Upside connection

Screwed

Downside connection

Screwed

Contact position indicator

Yes

[Icm] rated short-circuit making capacity

105 kA 400 V AC at 50 Hz

Complementary

Display type

LED

Transfer switch class

Number of contact position

Signal contacts composition

1 NO + 1 NC

Utilization category

AC-33iB

Control type

Split controller

Mounting support

Plate

[Ie] rated operational current

125 A

[Ui] rated insulation voltage

800 V

[Uimp] rated impulse withstand voltage

8 kV

Suitability for isolation

Yes

Mechanical interlocking

With mechanical interlocking

Mechanical durability

5000 cycles

Electrical durability

1000 cycles

Height

425 mm

Width

220 mm

Depth

148 mm

Net weight

9.46 kg

Environment

Standards

GB 14048.11

IP degree of protection

IP20

Pollution degree

Ambient air temperature for operation

-25…70 °C

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

Автомат сэлгэн залгагч #HDQ3HB250F1253

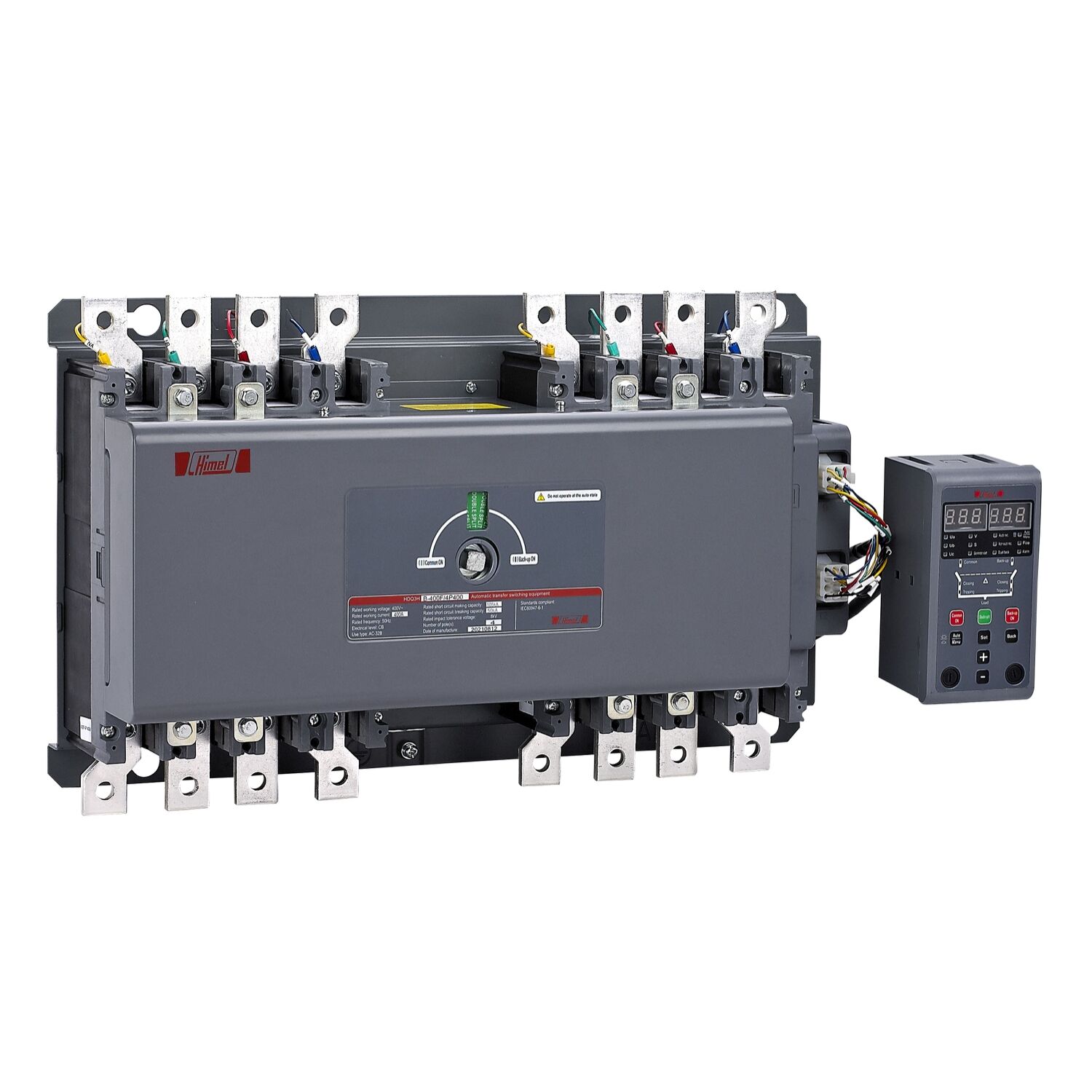

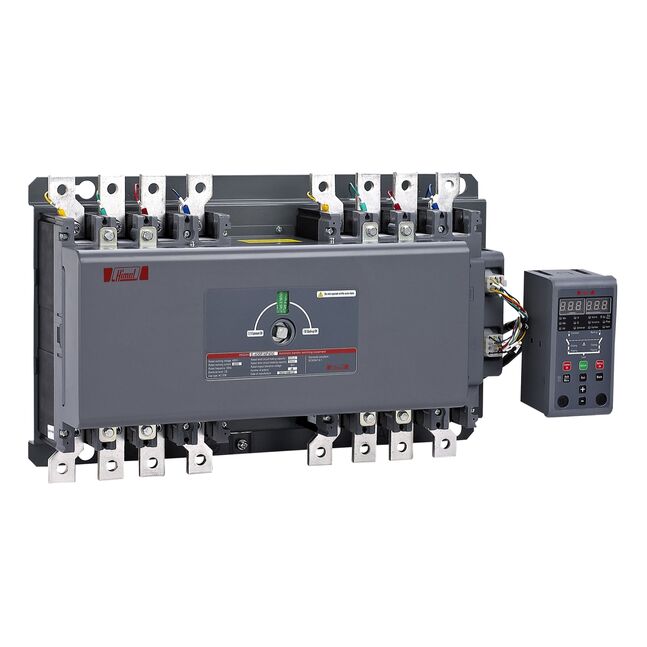

HDQ3HB, 250F/3P, 125A, split
